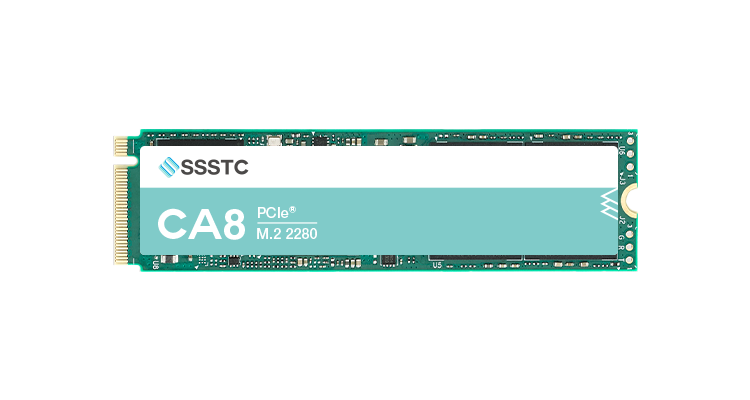

CA8 M.2 2280
NVMe™ SSD
512GB / 1024GB / 2048GB / 4096GB
NAND Flash: 3D TLC NAND Flash
Interface: PCIe® Gen5 x4
Sequential Read: UP to 14,000 MB/s
Sequential Write: UP to 12,000 MB/s
First Industrial M.2 SSD Featuring KIOXIA’s 8th generation BiCS FLASH™ Technology and PCIe® 5.0 Interface
High Speed
BiCS FLASH™ 3D NAND technology
Data Protection
PCIe® 5.0 and NVMe™ 2.0
Supporting ultra-high-speed data access with transfer rates up to 32 GT/s per-lane—doubling the throughput of PCIe® 4.0 interface. With SLC caching, the SSSTC CA8 Series achieves sequential read speeds of up to 14,000 MB/s and write speeds up to 12,000 MB/s, along with random performance of up to 2,000K IOPS (read) and 1,600K IOPS (write) — making it one of the fastest industrial SSDs on the market.

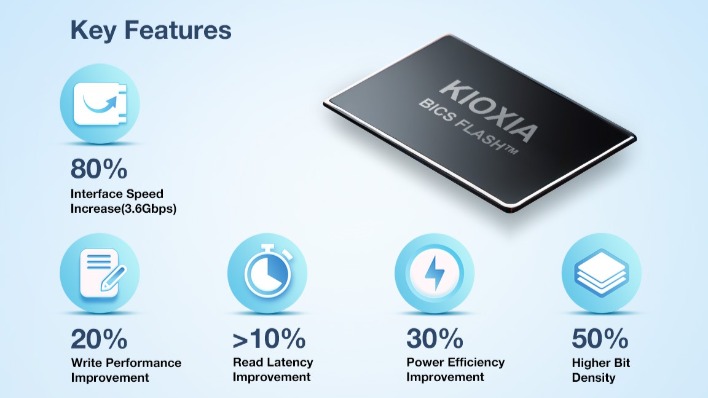

KIOXIA’s 8th generation BiCS FLASH™ 218-layer 3D TLC NAND Flash Memory
Enabling a 20% improvement in write performance, over 10% reduction in read latency, and up to 30% better power consumption. These enhancements make the SSSTC CA8 Series a critical enabler for data-intensive edge computing and high-performance industrial workloads.
|
Interface
|
PCIe Gen5x4 |
|
Capacity
|
512 GB / 1024 GB / 2048 GB / 4096 GB |
|
Flash Type
|
3D TLC |
|
Form Factor
|
M.2 2280 |
|
Sequential Read Speed (Max.)
|
14000 MB/s |
|
Sequential Write Speed (Max.)
|
12000 MB/s |
|
IOPS 4K Random Read/Write (Max.)
|
2000K/1600K IOPS |
|
MTBF
|
|
|
DWPD
|
> 1 (5 yrs) |
|
Power Consumption
|
9W typ. |
|
Operating Voltage
|
3.3V |
|
Dimensions (L x W x H) mm
|
80mm x 22mm x 1.35mm / 80mm x 22mm x 1.5mm |
|
Temperature
|
0°C to 85°C |
|
Storage Temperature
|
-40°C to 85°C |
|
Weight (Max.)
|
8g |
|
Security
|
AES-256 E2E Data Protection LDPC ECC TCG Opal |
|
PLP
|
FW PLP |
|
Features
|
LowPower S.M.A.R.T. |
|
DRAM Cache
|
With DRAM Cache |
|
Category
|
Industrial |
SSSTC reserves the right to modify or update any specifications or information listed on this website without prior notice. All product information and technical specifications are for reference only, and actual product specifications may vary based on current availability.
| Model | Operation Temperature |
|---|---|
| CA8-8D512G | Standard Temp (0°C to 70°C) |
| CA8-8D1T24 | Standard Temp (0°C to 70°C) |
| CA8-8D2T48 | Standard Temp (0°C to 70°C) |
| CA8-8D4T96 | Standard Temp (0°C to 70°C) |
