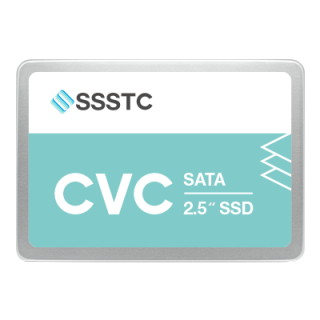

CVC 2.5"
SATA SSD
120GB / 128GB / 256GB / 480GB / 512GB / 960GB / 1024GB / 2048GB
NAND Flash: 3D TLC NAND Flash
Interface: SATA 3 (6Gb/s)
Sequential Read: UP to 550 MB/s
Sequential Write: UP to 510 MB/s
|
Interface
|
SATA 3 6.0Gb/s |
|
Capacity
|
120 GB / 128 GB / 256 GB / 480 GB / 512 GB / 960 GB / 1024 GB / 2048 GB |
|
Flash Type
|
3D TLC |
|
Form Factor
|
2.5" |
|
Sequential Read Speed (Max.)
|
550 MB/s |
|
Sequential Write Speed (Max.)
|
510 MB/s |
|
IOPS 4k Random Read/Write (Max.)
|
65K/75K IOPS |
|
MTBF
|
> 3 million hours |
|
DWPD
|
> 1 (3 yrs) |
|
Power Consumption
|
1W typ. |
|
Operating Voltage
|
5V |
|
Dimensions (L x W x H) mm
|
100.45mm x 69.85mm x 7mm |
|
Temperature
|
-25°C to 85°C / -40°C to 85°C |
|
Storage Temperature
|
-40°C to 85°C |
|
Weight (Max.)
|
35g |
|
Security
|
AES-256 E2E Data Protection LDPC ECC TCG Opal |
|
PLP
|
FW PLP |
|
Features
|
LowPower S.M.A.R.T |
|
Category
|
Industrial |
| Model | Operation Temperature | Part number |
|---|---|---|
| CVC-CD120 | Extended Temp(-25°C to 85°C) | TBD |
| CVC-CD128 | Extended Temp(-25°C to 85°C) | 3C01110361 |
| CVC-CD128 | Extended Temp(-25°C to 85°C) | 3C01110367 |
| CVC-CD128 | Extended Temp(-25°C to 85°C) | 3C01110360 |
| CVC-CT128 | Industrial Temp(-40°C to 85°C) | 3C01110359 |
| CVC-CT128 | Industrial Temp(-40°C to 85°C) | 3C01110362 |
| CVC-CV128 | Industrial Temp(-40°C to 85°C) | 3C01110366 |
| CVC-CD256 | Extended Temp(-25°C to 85°C) | 3C01120414 |
| CVC-CD256 | Extended Temp(-25°C to 85°C) | 3C01120407 |
| CVC-CD256 | Extended Temp(-25°C to 85°C) | 3C01120408 |
| CVC-CT256 | Industrial Temp(-40°C to 85°C) | 3C01120409 |
| CVC-CT256 | Industrial Temp(-40°C to 85°C) | 3C01120406 |
| CVC-CV256 | Industrial Temp(-40°C to 85°C) | 3C01120413 |
| CVC-CD480 | Extended Temp(-25°C to 85°C) | TBD |
| CVC-CD512 | Extended Temp(-25°C to 85°C) | 3C01140342 |
| CVC-CD512 | Extended Temp(-25°C to 85°C) | 3C01140349 |
| CVC-CD512 | Extended Temp(-25°C to 85°C) | 3C01140343 |
| CVC-CT512 | Industrial Temp(-40°C to 85°C) | 3C01140344 |
| CVC-CT512 | Industrial Temp(-40°C to 85°C) | 3C01140341 |
| CVC-CV512 | Industrial Temp(-40°C to 85°C) | 3C01140348 |
| CVC-CD960 | Extended Temp(-25°C to 85°C) | TBD |
| CVC-CD1024 | Extended Temp(-25°C to 85°C) | 3C01180045 |
| CVC-CD1024 | Extended Temp(-25°C to 85°C) | 3C01180049 |
| CVC-CD1024 | Extended Temp(-25°C to 85°C) | 3C01180044 |
| CVC-CT1024 | Industrial Temp(-40°C to 85°C) | 3C01180046 |
| CVC-CT1024 | Industrial Temp(-40°C to 85°C) | 3C01180043 |
| CVC-CV1024 | Industrial Temp(-40°C to 85°C) | 3C01180048 |
| CVC-CD2048 | Extended Temp(-25°C to 85°C) | 3C01181008 |
| CVC-CD2048 | Extended Temp(-25°C to 85°C) | 3C01181005 |
| CVC-CD2048 | Extended Temp(-25°C to 85°C) | 3C01181004 |
| CVC-CV2048 | Industrial Temp(-40°C to 85°C) | 3C01181007 |
