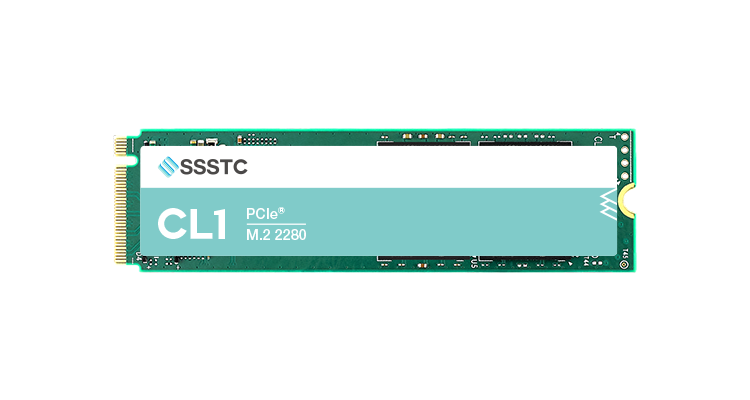

CL1 M.2 2280
NVMe™ SSD
128GB / 256GB / 512GB/ 1024GB
NAND Flash: 3D TLC NAND Flash
Interface: PCIe® Gen3 x4
Sequential Read: UP to 2,000 MB/s
Sequential Write: UP to 1,100 MB/s
Interface
|
PCIe Gen3x4 |
Capacity
|
128 GB / 256 GB / 512 GB / 1024 GB |
Flash Type
|
3D TLC |
Form Factor
|
M.2 2280 |
Sequential Read Speed (Max.)
|
2000 MB/s |
Sequential Write Speed (Max.)
|
1100 MB/s |
IOPS 4K Random Read/Write (Max.)
|
140K/200K IOPS |
MTBF
|
> 3 million hours |
DWPD
|
> 1 (3 yrs) |
Power Consumption
|
4W typ. |
Operating Voltage
|
3.3V |
Dimensions (L x W x H) mm
|
80mm x 22mm x 1.5mm |
Temperature
|
0°C to 70°C |
Storage Temperature
|
-40°C to 85°C |
Weight (Max.)
|
10g |
Security
|
AES-256 E2E Data Protection LDPC ECC TCG Opal |
PLP
|
FW PLP |
Features
|
LowPower S.M.A.R.T |
DRAM Cache
|
DRAM-less |
Category
|
Industrial |
Model | Operation Temperature | Part number |
---|---|---|
CL1-8D128 | Standard Temp(0°C to 70°C) | 3C07110309 |
CL1-8D128 | Standard Temp(0°C to 70°C) | 3C07110358 |
CL1-8D256 | Standard Temp(0°C to 70°C) | 3C07120518 |
CL1-8D256 | Standard Temp(0°C to 70°C) | 3C07120415 |
CL1-8D512 | Standard Temp(0°C to 70°C) | 3C07140353 |
CL1-8D512 | Standard Temp(0°C to 70°C) | 3C07140229 |
CL1-8D1024 | Standard Temp(0°C to 70°C) | 3C07180065 |
Application
FinTech
Financial Technology
Industrial Automation
Industrial Automation
Networking & Telecom
Networking & Telecom
AIoT
AIOT
Healthcare
Healthcare
Gaming
Gaming
