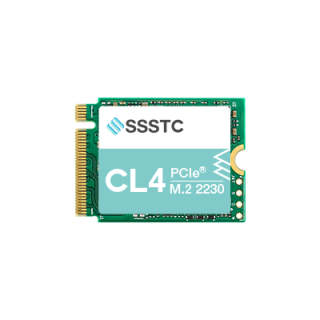

CL4 M.2 2230

  • Flash Type: 3D TLC NAND flash
  • Type: M.2 2230
  • Interface: NVMe PCle Gen 4 x4
  • Sequential Read/Write: 3,700/2,600 MB/s
  • 4K Random Read/Write: 450K/400K IOPS
  • Capacity: 256GB / 512GB / 1TB
Additional information Datasheet
  •  High Performance NVMe PCIe
  •  Low latency
  •  Slim form factor
  •  LDPC technology
Model CL1 M.2 2230
Capacity 256GB 512GB 1TB
Interface NVMe PCle Gen 4 x4
Performance
Sequential Read/Write (MB/s) 3,200/2,100 3,500/2,100 3,700/2,600
4K Random Read/Write (IOPS) 400K/350K 400K/350K 450K/400K
Reliability
Power on/off cycles 50,000
MTBF >2,000,000 hours
Warranty 3 Years
Features
ECC LDPC Gen 4 Engine
S.M.A.R.T. Supported
NVMe Deallocate Supported
TCG-OPAL 2.0 Optional
Power Consumption
Idle/Active Mode 0.4 W/4 W
Sleep Mode 5mW
Environment
Operating Temperature 0 to 70° C
Non-operating Temperature -40 to 85° C
Power-On Ready 500 ms
