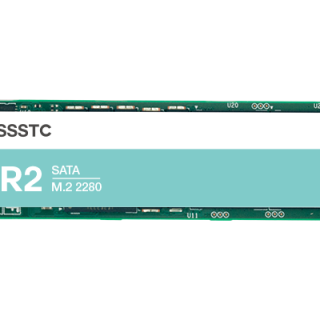

ER2 M.2 2280

  • Flash Type: 3D TLC NAND flash
  • Type: M.2 2280
  • Interface: SATA 3 (6Gb/s)
  • Seq. Read: Up to 520 MB/s
  • Seq. Write: UP to 520 MB/s
  • Features: AES/PLP
  • Capacity: 240GB/480GB
  • High I/O and throughput performance
  • Consistent I/O latency
  • Enhanced power-loss data protection (Option)
  • Thermal throttling
  • Temperature Sensor
  • Temperature monitor and logging
  • End to end Data Path Protection
  • Power loss protection capacitor self-test (Option)
  • Inrush current management
  • High reliability
Model ER2 (M.2 2280)
Capacity 240GB/480GB
Flash Type 3D TLC NAND flash
Performance
Seq. Read (MB/s) Up to 520
Seq. Write (MB/s) Up to 520
Environment and Reliability
Power Requirement DC 5V2.0A(Max)
Temperature 0-70 degrees(operating)
MTBF >2,000,000 hours
Compatibility
Agency Approval CE, UL, BSMI, WHQL, RoHS
Command Set Support TRIM, S.M.A.R.T, NCQ
Interface SATA 3 (6Gb/s)
Form Factor and Connectors
Form Factor M.2 2280
Power Connector M.2 connector for DC 3.3V
Data Connector M.2 connector
Dimension and Weight
Dimension (L/W/H) 80.0mm x 22.00mm x 3.65 mm (L x W x H)
Weight (Max.) 10g
Technolgy
Feature AES/PLP
