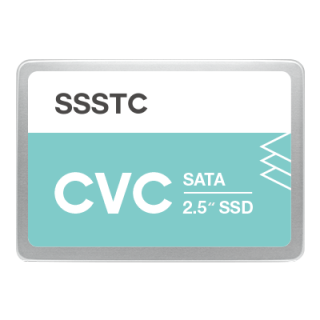

介面
|
SATA 3 6.0Gb/s |
|
容量
|
120 GB / 128 GB / 240 GB / 256 GB / 480 GB / 512 GB / 960 GB / 1024 GB / 1920 GB / 2048 GB |
|
Flash 类型
|
3D TLC |
|
规格尺寸
|
2.5" |
|
循序读取速度（最高）MB/s
|
550 MB/s |
|
循序写入速度（最高）MB/s
|
510 MB/s |
|
IOPS 4K随机读写 (最高)K
|
65K/75K IOPS |
|
平均故障间隔 (MTBF)
|
> 3 million hours |
|
DWPD
|
> 1 (3 yrs) |
|
耗电量 (W)
|
1W typ. |
|
工作电压
|
5V |
|
尺寸 (长 x 宽 x 高 ) mm
|
100.45mm x 69.85mm x 7mm |
|
作业温度
|
-25°C to 85°C / -40°C to 85°C |
|
储存温度
|
-40°C to 85°C |
|
重量
|
35g |
|
安全性
|
AES-256 E2E Data Protection LDPC ECC TCG Opal |
|
PLP
|
FW PLP HW PLP |
|
特色
|
LowPower S.M.A.R.T. |
|
类别
|
Industrial |
建兴储存科技（SSSTC）保留随时变更或更新本网站上所列规格及信息之权利，恕不另行通知。所有产品信息及技术规格仅供参考，实际出货产品规格以当前供应状况为准。
| 型号 | 备註 |
|---|---|
| CVC-CD120 | Extended Temp (-25°C to 85°C) |
| CVC-CD128 | Extended Temp (-25°C to 85°C) |
| CVC-CD128 | Extended Temp (-25°C to 85°C) |
| CVC-CT128 | Industrial Temp (-40°C to 85°C) |
| CVC-CU128P | Extended Temp (-25°C to 85°C) |
| CVC-CV128 | Industrial Temp (-40°C to 85°C) |
| CVC-CV128P | Industrial Temp (-40°C to 85°C) |
| CVC-CD240 | Extended Temp (-25°C to 85°C) |
| CVC-CD256 | Extended Temp (-25°C to 85°C) |
| CVC-CD256 | Extended Temp (-25°C to 85°C) |
| CVC-CT256 | Industrial Temp (-40°C to 85°C) |
| CVC-CU256P | Extended Temp (-25°C to 85°C) |
| CVC-CV256 | Industrial Temp (-40°C to 85°C) |
| CVC-CV256P | Industrial Temp (-40°C to 85°C) |
| CVC-CD480 | Extended Temp (-25°C to 85°C) |
| CVC-CD512 | Extended Temp (-25°C to 85°C) |
| CVC-CD512 | Extended Temp (-25°C to 85°C) |
| CVC-CT512 | Industrial Temp (-40°C to 85°C) |
| CVC-CU512P | Extended Temp (-25°C to 85°C) |
| CVC-CV512 | Industrial Temp (-40°C to 85°C) |
| CVC-CV512P | Industrial Temp (-40°C to 85°C) |
| CVC-CD960 | Extended Temp (-25°C to 85°C) |
| CVC-CD1024 | Extended Temp (-25°C to 85°C) |
| CVC-CD1024 | Extended Temp (-25°C to 85°C) |
| CVC-CT1024 | Industrial Temp (-40°C to 85°C) |
| CVC-CU1024P | Extended Temp (-25°C to 85°C) |
| CVC-CV1024 | Industrial Temp (-40°C to 85°C) |
| CVC-CV1024P | Industrial Temp (-40°C to 85°C) |
| CVC-CD1920 | Extended Temp (-25°C to 85°C) |
| CVC-CD2048 | Extended Temp (-25°C to 85°C) |
| CVC-CD2048 | Extended Temp (-25°C to 85°C) |
| CVC-CU2048P | Extended Temp (-25°C to 85°C) |
| CVC-CV2048 | Industrial Temp (-40°C to 85°C) |
| CVC-CV2048P | Industrial Temp (-40°C to 85°C) |
